Chapter 1: System Components

A detailed breakdown of every component in the segmentation architecture, its zone placement, inputs/outputs, and engineering KPIs.

1.1 System Architecture

The component-level architecture organizes security enforcement and operational tooling into discrete zones, each with a defined trust boundary. Inter-zone traffic must traverse defined enforcement points — either a Next-Generation Firewall (NGFW), an Internal Segmentation Firewall (ISFW), a distributed firewall, or a segmentation gateway. Optional boundary controls such as service mesh policy, DLP, database audit, and data tokenization may be layered on top of the mandatory enforcement points for environments with higher sensitivity or compliance requirements.

Support dependencies that underpin the entire architecture include time synchronization (NTP hierarchy), DNS hierarchy with conditional forwarding, certificate/PKI infrastructure, backup systems, and centralized monitoring. These are not optional — without NTP, log correlation becomes unreliable; without PKI, TLS inspection and certificate-based authentication cannot function.

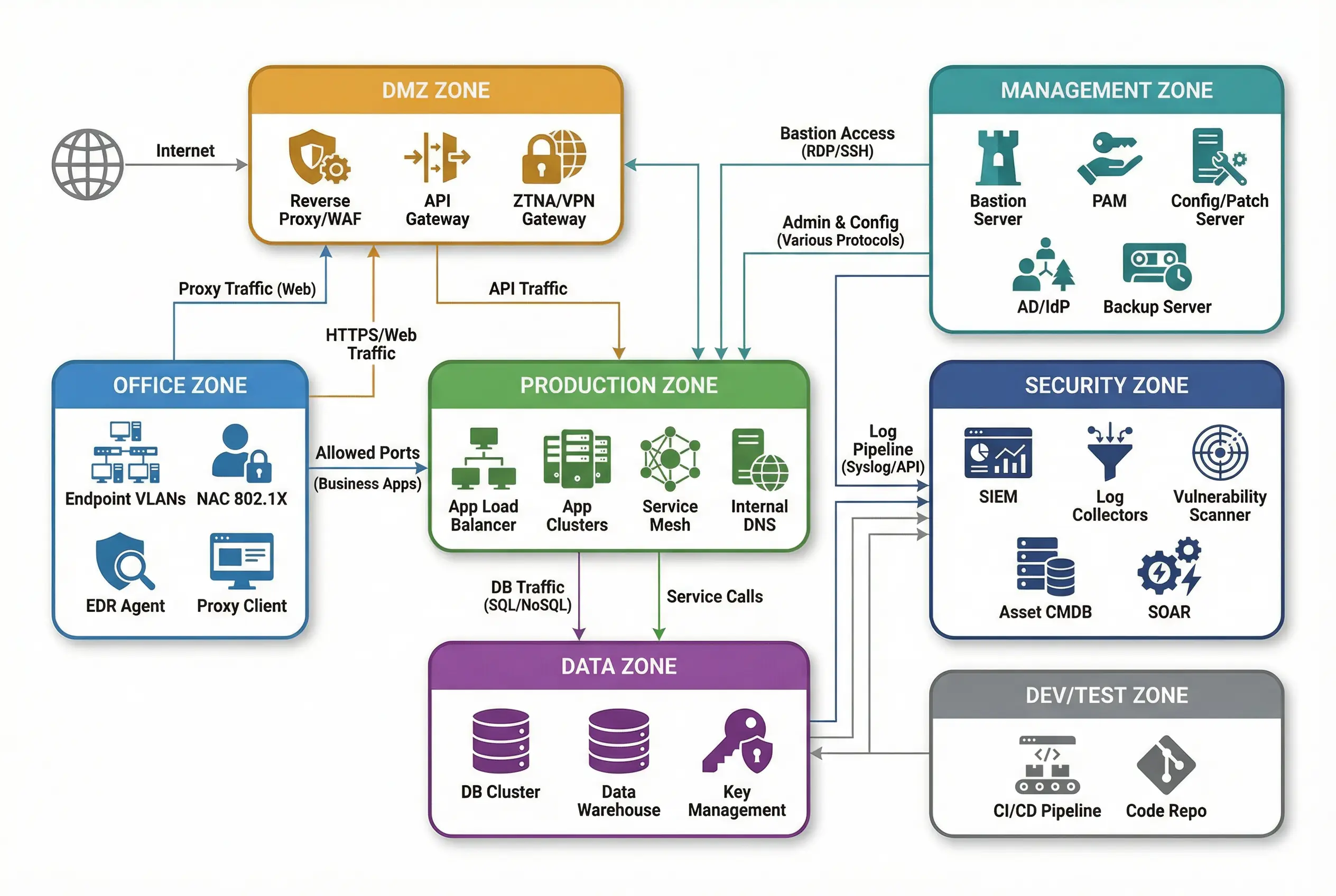

Figure 1.1: Component-Level Architecture Diagram — Zone boxes showing components within each zone (DMZ, Office, Production, Data, Management, Security, Dev/Test) with traffic flow arrows indicating enforcement paths between zones.

Core and Optional Boundary Controls

• Core boundary (mandatory): Inter-zone traffic must traverse defined enforcement points — NGFW/ISFW/segmentation gateway or distributed firewall.
• Optional boundary: Service mesh policy, DLP, DB audit, data tokenization, deception systems.
• Support dependencies: Time sync (NTP), DNS hierarchy, certificate/PKI, backup, monitoring.

1.2 Components and Functions

The component inventory maps each security and operational tool to its recommended zone, defines its primary responsibility, and specifies the key performance indicators (KPIs) that must be validated during acceptance testing. Mismatches between component sizing and actual workload are a leading cause of security failures and operational incidents — the table below captures the most critical mismatch risks for each component.

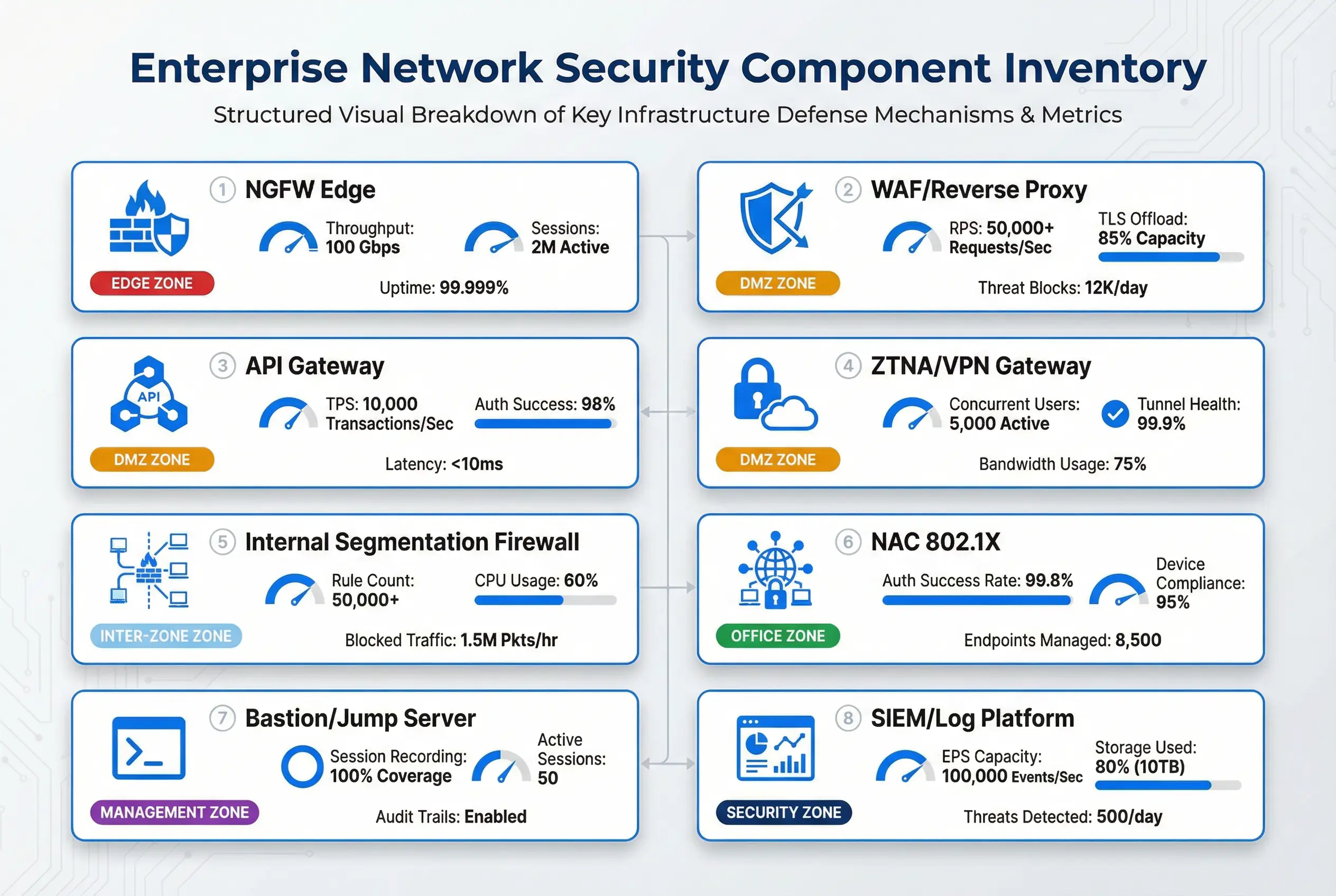

Figure 1.2: Component Inventory Map — Visual grid showing each security component with its zone badge, key KPI gauges, and performance metrics for rapid reference during design and acceptance reviews.

Table 1-1: Component Responsibilities and Engineering KPIs

1.3 Working Principles

Startup Flow

The correct sequence for bringing up a segmented environment is critical — each step builds on the previous one, and skipping steps creates security gaps that are difficult to detect after the fact. The startup flow must be followed in order:

1. Establish zone definitions and domain ownership.
2. Build enforcement points (edge NGFW, ISFW/distributed firewall, proxy/gateway).
3. Create a baseline deny policy between zones, then allowlist required flows.
4. Onboard identity (MFA, privileged access) and log pipeline (time sync first).
5. Perform staged cutover with rollback plans.

Normal Operation

During steady-state operation, all inter-zone traffic follows the defined conduits. Office users access internal applications via published paths (proxy/API gateway) or direct allowlisted ports where justified and documented. Admin operations occur exclusively via bastion/PAM — no direct RDP/SSH from Office to servers is permitted. Production services call Data via limited DB ports with service accounts, monitored by DB audit and DLP where required. The SOC receives logs from all zones, and alerts trigger SOAR playbooks for automated or semi-automated response.

Exception and Recovery

Exceptions to the default-deny baseline must have a ticket ID, owner, expiry date, and compensating controls. No exception should be open-ended or unreviewed. The following abnormal chains illustrate how the architecture responds to real-world incidents:
